Rolan receiver card is a trigger card with relay output that works with Kontal Rolan series remote controls. It have relays that as working dry contact.

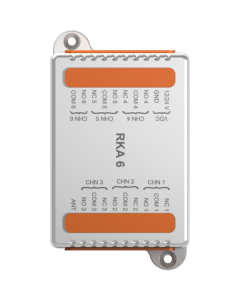

6 Channels Rolan Reciever
Receiver
6 Channels Rolan Reciever
TECHNICAL FEATURES
| Model | RKA6 |
|---|---|
| Product Code | K192-01 |
| Working Volatage | 12 – 24V DC |
| Working Current | Max. 180mA @24V DC |
| Working Frequency | 433.92MHz |
| Channel Number | 6 |
| Contact Type | Dry Contact/NO/NC |
| Max. Contact Power | 250V AC 10A |
| Auto-Learning | ✓ |
| Remoto Control Capacity | 500 |
| Weihgt | 150 gr |
| Dimensions (Width x Length x Depth) | 67,10 x 115,59 x 34,60 mm |
