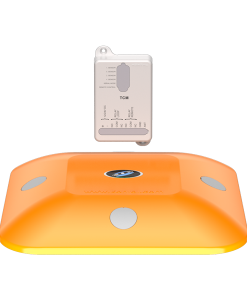

The TCM control card is an electronic control board that can output when it detects a signal from the transmitter sensors or remotes defined in its memory. It is generally used in parking systems, site entrances, automatic opening and closing of barriers or automatic ticket issuance to determine whether there is a vehicle in the targeted place on the ground. In addition to these, it can also be used in industrial doors, bollard systems and PVC doors. The transmitting sensor (TS/KS), which will be fixed to the ground, detects the density of the metal that will come on it and communicates with the controller (TC/TCM) and the desired device is controlled thanks to the relay or relays on the control card.

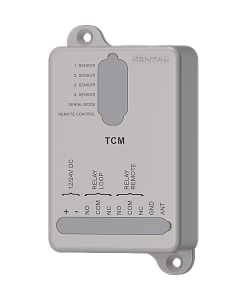

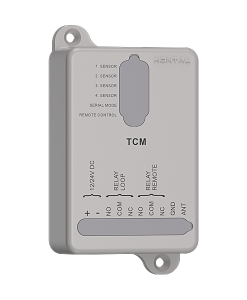

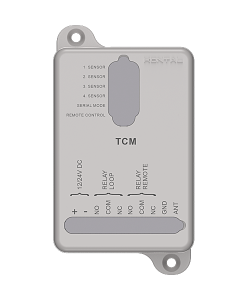

TCM - TOSBA CONTROLLER (MINI)
Accessories · Control Board · Receiver · Remote Control
TCM - TOSBA CONTROLLER (MINI)
TECHNICAL FEATURES
| Model | TCM |
|---|---|
| Product Code | K207-02 |
| Working Volatage | 12/24V DC |
| Working Current | 30mA @ 24V DC (Max.) |
| Working Frequency | 433,92MHz |
| Contact Type | Dry Contact/NO/NC |
| Contact Capacity | 30V DC 1A / 125V AC 0.3A (Max.) |
| Transmitter Sensor Capacity | 4 |
| Working Temprature | -20 oC +55 oC |
| Weihgt | 94gr |
| Dimensions | 66 x 116 x 26 mm |
