The EKA and EKA2 receivers are relay output triggering devices designed to work with EVS series remotes. The EKA model includes 1 relay, while the EKA2 model includes 2 relays, allowing control of the desired device(s).

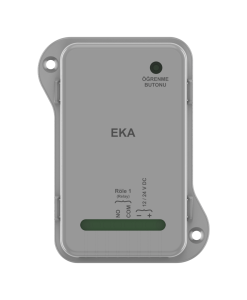

EKA - 1 Channel Rolling Code Receiver
Receiver · Rolling Code
EKA - 1 Channel Rolling Code Receiver
TECHNICAL FEATURES
| Model | EKA |
|---|---|
| Product Code | K168-01 |
| Operating Voltage | 12 – 24V DC |
| Operating Current | 40mA @24V DC |
| Operating Frequency | 433.92MHz |
| Channel Number (Relays) | 1 |
| Operating Mode | Pulse / Toggle |
| Contact Type | Dry Contact / NO |
| Maximum Contact Power | 250V AC 10A |
| Auto-Learning | No |
| Remote Control Capacity | 250 |
| Weihgt | 95gr |
| Dimensions | 82.5 x 108.5 x 35 mm |
