MKA2 is an electronic mini receiver device with NO/NC dry contact output, compatible with EVS series remote controls.

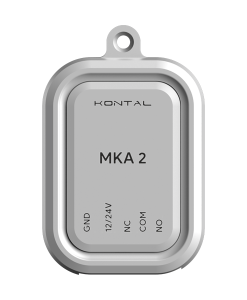

MKA2 - 1 Channel Rolling Code Mini Receiver
Accessories · Receiver
MKA2 - 1 Channel Rolling Code Mini Receiver
TECHNICAL FEATURES
| Model | MKA2 |
|---|---|
| Product Code | 193-01 |
| Working Volatage | 12 / 24 V DC |
| Working Current | 12mA @ 24 V DC |
| Frequency | 433,92 MHz |
| Output Type | Pulse / Toggle |
| Contact Type | 12 / 24 V DC - NC/NO |
| Maximum Contact Power | 250V 10A |
| Remote Control Capacity | 500 |
| Weihgt | 40 gr |
| Dimensions (mm) | 43,06 x 57,73 x 25,13 |
