The safety edge system works in transceiver structure and is used in shutters, barriers, sliding doors and industrial doors. The purpose of use is to prevent the moving door/shutter from hitting and harming people or other things.

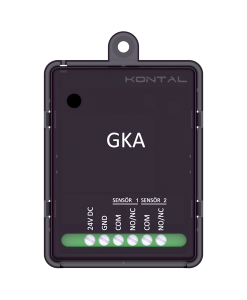

GKA - Wireless Safety Edge Receiver
Accessories · Accessories · Receiver
GKA - Wireless Safety Edge Receiver
TECHNICAL FEATURES
| Model | GKA |
|---|---|
| Product Code | K165-01 |
| Operating Voltage | 12/24V DC |
| Operating Current | 30mA@24V |
| Operating Frequency | 433,92MHz |
| Contact Type | Dry Contact - NO/NC |
| Max. Contact Power | 250V 5A |
| Auto-Learning | ✓ |
| GKV Capacity | 2 |
| Weihgt | 57gr |
| Dimensions | 57 x 85 x 24mm |
