RKA and RKA2 are receivers designed for Rolan model remote controls. The RKA allows control of a device with 1 relay, while the RKA2 provides control with 2 relays, and the RKA4 offers control with 4 relays.

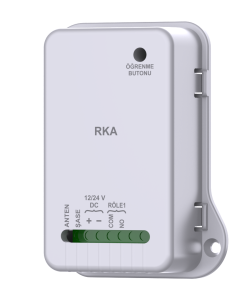

RKA - 1 Channel Rolling Code Reciever
Receiver

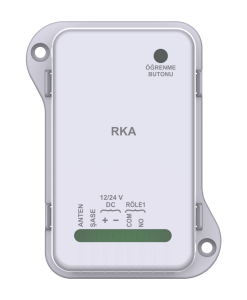

RKA - 1 Channel Rolling Code Reciever
TECHNICAL FEATURES
| TECHNICAL FEATURES | ROLLAN RECEIVER |
|---|---|
| Model | RKA |
| Product Code | K003-01 |
| Working Volatage | 12 – 24V DC |
| Working Current | 50mA @24V DC |
| Working Frequency | 433.92MHz |
| Channel Number | 1 |
| Contact Type | Dry Contact / NO |
| Max. Contact Power | 250V AC 10A |
| Auto-Learning | + |
| Remote Control Capacity | : 650 |
| Dimensions | 82.5 x 108.5 x 35 mm |
| Weight(gr) | 95 |
