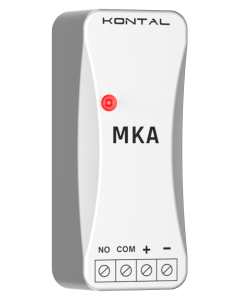

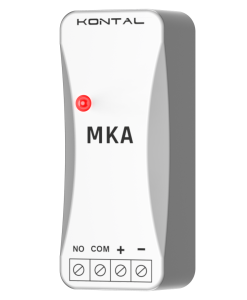

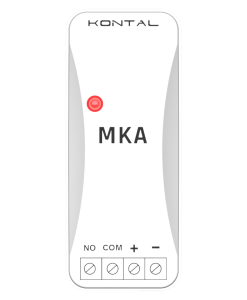

MKA is a mini receiver board compatible with the Rolan series remote controls. The board has a single relay output and offers two operating voltage options: 12V and 24V. It is designed for remote control operation of doors equipped with electronic lock mechanisms and it can also be used for triggering applications in low-power environments.
MKA - 1 Channel Rolling Code Reciever
Receiver
MKA - 1 Channel Rolling Code Reciever
TECHNICAL FEATURES
| Model | MKA |
|---|---|
| Product Code | K031-02 |
| Working Volatage | 12 / 24V DC |
| Working Current | 48mA @24V DC |
| Working Frequency | 433,92MHz |
| Output Type | Pulse /Toggle |
| Contact Type | 12 / 24V DC - NO |
| Max. Contact Power | 250V 5A |
| Auto-Learning | + |
| Remote Control Capacity | 500 |
| Weihgt | 28 |
| Dimensions (Width x Length x Depth) | 27 x 67,5 x 22mm |
