433 Mhz Rollnig Code Roller Shutter Control Board works with MEF Safety Beam Sensor
Fields ;
- Garage Door Systems
- Roller Shutter Systems
- Industrial PVC and Fast Door Systems

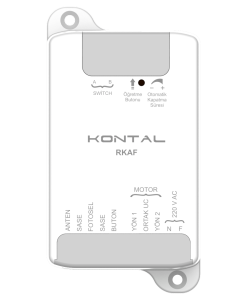

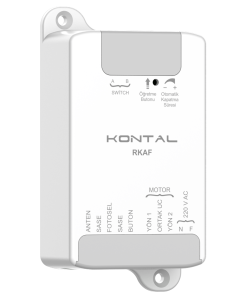

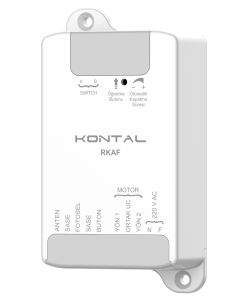

RKAF - Roller Shutter Control Board with Beam Sensor
Receiver · Control Board
RKAF - Roller Shutter Control Board with Beam Sensor
TECHNICAL FEATURES
| Model | RKAF |
|---|---|
| Product Code | K018-01 |
| Working Volatage | 220V AC 50Hz |
| Working Current | 10mA @220V |
| Working Frequency | 433,92MHz |
| Contact Type | 220V AC |
| Max. Contact Power | 250V 10A AC |
| Max. Contacting Time | 180sn |
| Auto-Learning | Ok |
| External Button Input | Ok |
| External Beam Sensor Input | Ok : MF – Tiny Beam Sensor |
| Remote Control Capacity | 35 |
| Weihgt | 190gr |
| Dimensions (Width x Length x Depth) | 68,7 x 106,1 x 33mm |
