RKA2 is an external dry contact receiver operating at a frequency of 433.92 MHz. It is designed to work with rolling code remote controls and features dual relay outputs. The device provides extensive versatility through its DIP switch settings, allowing for various operational modes including Pulse/Toggle, Synchronized Operation, and Adjustable Pulse Duration. This flexibility makes it suitable for a broad range of applications.

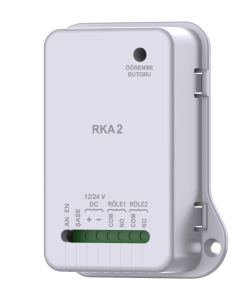

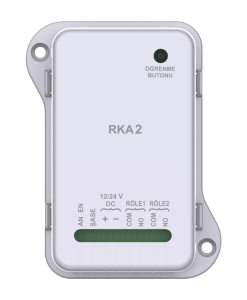

RKA2 - 2 Channel Rolling Code Reciever
Receiver
RKA2 - 2 Channel Rolling Code Reciever
TECHNICAL FEATURES
| TECHNICAL FEATURES | TECHNICAL FEATURES |
|---|---|
| Model | RKA2 |
| Product Code | K004-01 |
| Working Volatage | 12 – 24V DC |
| Working Current | 80mA @24V DC |
| Working Frequency | 433.92MHz |
| Channel Number | 2 |
| Contact Type | Dry Contact / NO |
| Max. Contact Power | 250V AC 10A |
| Auto-Learning | + |
| Remote Control Capacity | 650 |
| Dimensions (Width x Length x Depth) | 82.5 x 108.5 x 35 mm |
| Weight(gr) | 95 |
