QULP S is a 220V motor control card with photocell connection and designed for Qulp series remote controls. It is specially designed to control the shutter motors. In addition, shutter systems can be safely controlled with an external photocell connection.

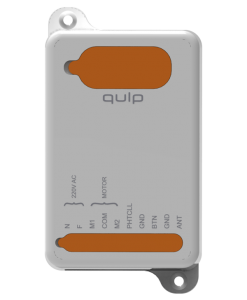

Qulp S - 220V Motor Control Board
Receiver
Qulp S - 220V Motor Control Board
TECHNICAL FEATURES
| Model | qulp S |
|---|---|
| Product Code | K144-01 |
| Working Volatage | 220V AC 50Hz |
| Working Current | 10mA @220V |
| Working Frequency | 868,35MHz |
| Contact Type | 220V AC |
| Max. Contact Power | 250V 10A AC |
| Max. Contacting Time | 180sn |
| Auto-Learning | ü |
| External Button Input | ü |
| External Beam Sensor Input | ü MF – Tiny Beam Sensor |
| Remote Control Capacity | 500 |
| Weihgt | 217gr |
| Dimensions (Width x Length x Depth) | 71,42 x 131,94 x 35 mm |
