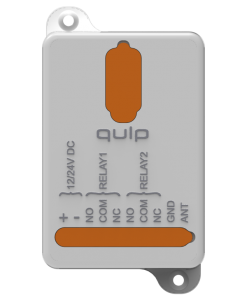

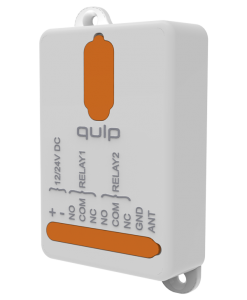

QULP Receiver that working with QULP series remotes is control unit. It has a relay that as working dry contact. Also, there are 2 models called QULP Receiver and diference between these models is count of relay.

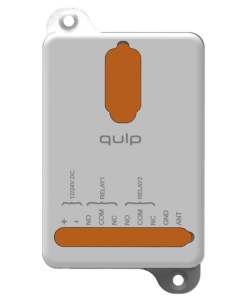

Qulp R1 - 1 Channel Rolling Code Reciever
Receiver
Qulp R1 - 1 Channel Rolling Code Reciever
TECHNICAL FEATURES
| Model | : qulp R1 |
|---|---|
| Product Code | : K146-01 |
| Working Volatage | : 12 – 24 V DC |
| Working Current | : 40mA @24V DC |
| Working Frequency | : 868,35MHz |
| Channel Number | : 1 |
| Contact Type | : Dry Contact NO/NC |
| Max. Contact Power | : 250V AC 10A |
| Auto-Learning | : ü |
| Remote Control Capacity | : 500 |
| Weihgt | : 110gr |
| Dimensions (Width x Length x Depth) | : 66 x 116,64 x 26,65 mm |
