QULP Receiver that working with QULP series remotes is control unit. It has a relay that as working dry contact. Also, there are 2 models called QULP Receiver and diference between these models is count of relay.

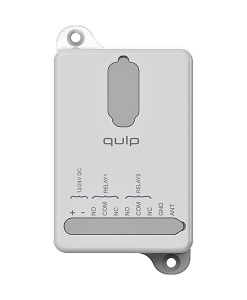

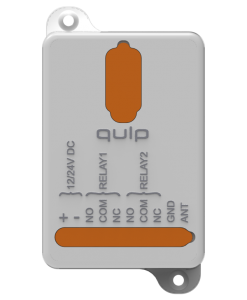

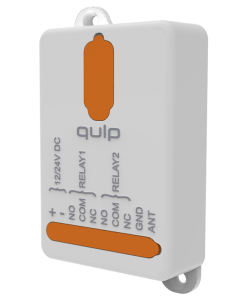

Qulp R2- 2 Channel Rolling Code Reciever
Receiver
Qulp R2- 2 Channel Rolling Code Reciever
TECHNICAL FEATURES
| Model | qulp R2 |
|---|---|
| Product Code | K143-01 |
| Working Volatage | 12 – 24 V DC |
| Working Current | 40mA @24V DC |
| Working Frequency | 868,35MHz |
| Channel Number | 2 |
| Contact Type | Dry Contact/NO/NC |
| Max. Contact Power | 250V AC 10A |
| Auto-Learning | ü |
| Remote Control Capacity | 500 |
| Weihgt | 115,6gr |
| Dimensions (Width x Length x Depth) | 66 x 116,64 x 26,65 mm |
