Light Curtain (BF2) is a product that operates using an infrared communication protocol and is typically used for safety purposes. It is available in two models: BF2 90 (90 cm) and BF2 180 (180 cm).

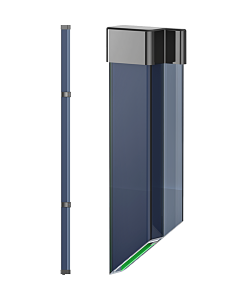

BF2 90V - 90cm Light Curtain Transmitter
Photocell
BF2 90V - 90cm Light Curtain Transmitter
TECHNICAL FEATURES
| Model | BF2 90V |
|---|---|
| Product Code | K159-01 |
| Working Volatage | 12-24V AC / 15-40V DC |
| Working Current | 100mA @24V DC |
| Max. Reaction Time (Linear / Cross Mode) | - |
| Max. Working Distance | 16m* |
| Min. Contacting Time | - |
| Infrared Frequency | 38kHz |
| Working Temperature | -20 oC +55 oC |
| Contact Type | - |
| Max. Contact Power | - |
| Weihgt | 1450gr |
| Dimensions (Width x Length x Depth) | 3,6 x 92 x 1,3cm |
