Light Curtain (BF2) is a product that operates using an infrared communication protocol and is typically used for safety purposes. It is available in two models: BF2 90 (90 cm) and BF2 180 (180 cm).

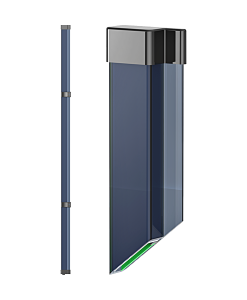

BF2 180A - 180cm Light Curtain Receiver
Photocell
BF2 180A - 180cm Light Curtain Receiver
TECHNICAL FEATURES
| Model | BF2 180A |
|---|---|
| Product Code | K160-01 |
| Working Volatage | 12-24V AC / 15-40V DC |
| Working Current | 100mA @24V DC |
| Max. Reaction Time (Linear / Cross Mode) | 125ms / 270ms |
| Max. Working Distance | 16m* |
| Min. Contacting Time | 500ms |
| Infrared Frequency | 38kHz |
| Working Temperature | -20 oC +55 oC |
| Contact Type | Dry Contact/NO/NC |
| Max. Contact Power | 60V DC 100mA, 42V AC 100mA |
| Weihgt | 2550gr |
| Dimensions (Width x Length x Depth) | 3,6 x 182 x 1,3cm |
