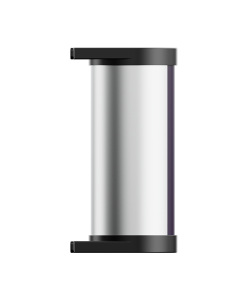

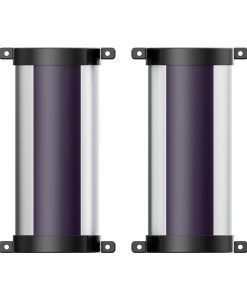

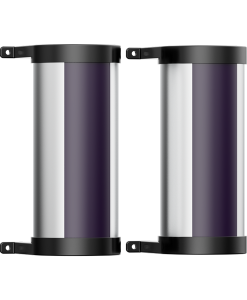

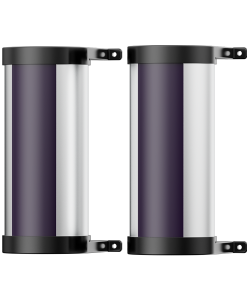

EMFUM - 180° Adjustable Long-Range Safety Beam Sensor

Photocell

EMFUM - 180° Adjustable Long-Range Safety Beam Sensor


TECHNICAL FEATURES

Model EMFUMA
Product Code K197-02
Operating Voltage 12 – 24V DC
Operating Current 21mA @24V DC
Number of Zones 1 Receiver Zone
Operating Distance 80 metres
Operating Temperature -20 oC  +55 oC
Contact Type Dry Contact/NO/NC
Minimum Contact Reaction Time 150ms (Receiver Module)
Maximum Contact Power 60V DC 1A,  60V AC 1A
Weihgt 409,6 gr
Dimensions (Length x Diameter) 206 x 78 mm

Description


EMFUM is a unit manufactured for long-distance safety and control purposes and operates as a receiver (EMFUMA) and transmitter (EMFUMV) with infrared signals. The receiver and transmitter units are designed to be able to see each other at the most accurate angle on the horizontal plane when mounted on surfaces with different directions, with ± 90 degree angle adjustments. If any obstacle comes in between, the system is outputted and control is provided.

Applications:

  • Shutter systems
  • Barrier systems
  • Sliding gate systems
  • Bollard barrier systems
  • Industrial door and high-speed PVC door systems
