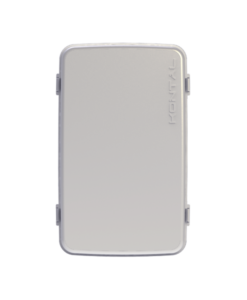

GAF - Functional Motor Control Board
Control Board
GAF - Functional Motor Control Board
TECHNICAL FEATURES
| Model | GAF |
|---|---|
| Product Code | K008-01 |
| Working Volatage | 220V 50Hz AC |
| Working Current | 12mA @220V |
| Working Frequency | 433,92MHz |
| Contact Type | 220V AC |
| Max. Contact Power | 250V 10A AC |
| Max. Contacting Time | 0,3 – 180sn |
| Auto-Learning | ü |
| Remote Control Capacity | 500 |
| Weihgt | 430gr |
| Dimensions (Width x Length x Depth) | 98,3 x 157,5 x 50mm |
