WPA is a 220V motor control card with photocell connection and designed for EVS3 series remote controls. It is specially designed to control the shutter motors. In addition, shutter systems can be safely controlled with an external photocell connection.

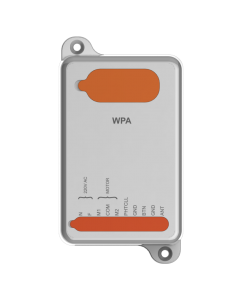

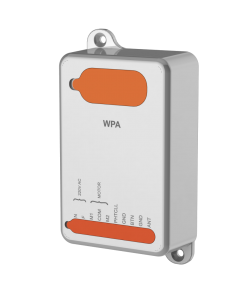

WPA – Wifi Shutther Opener
Control Board
WPA – Wifi Shutther Opener
TECHNICAL FEATURES
| Model | WiFi PA |
|---|---|
| Product Code | K184-01 |
| Working Volatage | 220V AC 50Hz |
| Working Current(Standby) | 3,5mA @220V |
| Working Frequency | 433,92MHz and 2,4GHz |
| Contact Type | 220V AC |
| Max. Contact Power | 250V 10A AC |
| Max. Contacting Time | 120sn |
| External Button Input | ü |
| External Beam Sensor Input | ü MF – Tiny Beam Sensor |
| Remote Control Capacity | 20 |
| Weihgt | 217gr |
| Dimensions (Width x Length x Depth) | 71,42 x 131,94 x 35 mm |
