The EMFB is an infrared (IR) sensor system developed for safety and control applications. The system consists of two modules: a transmitter (EMFB-V) and a receiver (EMFB-A), which are installed facing each other. The transmitter module emits infrared signals, while the receiver module detects these signals. When an object interrupts the signal path between the transmitter and receiver, the system generates an output signal, thereby triggering the required control or safety mechanism.

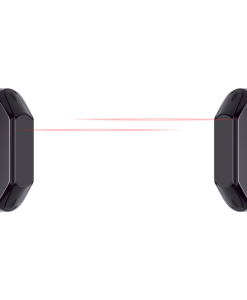

EMFB - Safety Beam Sensor
Photocell

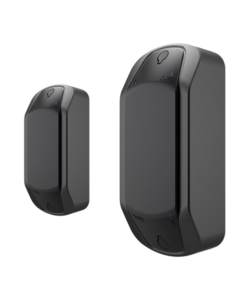

EMFB - Safety Beam Sensor
TECHNICAL FEATURES
| Product Code | K100-01 |
|---|---|
| Working Volatage | 12 – 24V DC |
| Current Value | 21mA@24V DC |
| Working Distance | 16 meters |
| Working Temperature | -20 oC +55 oC |
| Contact Type | Dry Contact/NO/NC |
| Contact Reaction Time | 150ms (Min.) |
| Contact Power | 30V DC 1A, 125V AC 0.3A(Max.) |
| Weihgt | 60gr |
| Dimensions (Width x Length x Depth) | 43 x 105 x 36,5mm |
