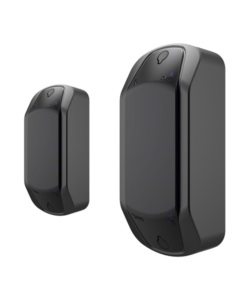

EMFP is a unit designed for safety and control purposes, operating with infrared signals as a receiver (EMFPA) and a transmitter (EMFPV). The receiver and transmitter units should be installed in a way that they have a direct line of sight to each other. The products are designed to trigger the connected system and provide control if the signal path between the units is blocked by any obstacle.

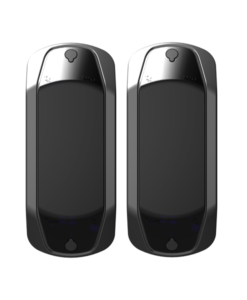

EMFP - Safety Beam Sensor with Battery
Photocell
EMFP - Safety Beam Sensor with Battery
TECHNICAL FEATURES
| Model | EMFPA |
|---|---|
| Product Code | K102-01 |
| Operating Voltage | 12 – 24V DC |
| Operating Current | 25mA @24V DC |
| Operating Frequency | 38KHz |
| Number of Zones | 1 Receiver Zone |
| Operating Distance | 12 metres |
| Operating Temperature | -20 oC +55 oC |
| Contact Type | Dry Contact/NO/NC |
| Minimum Contact Reaction Time | 150ms (Receiver Module) |
| Maximum Contact Power | 60V DC 1A, 60V AC 1A |
| Weihgt | 58gr |
| Dimensions | 43 x 105 x 36,5 mm |
