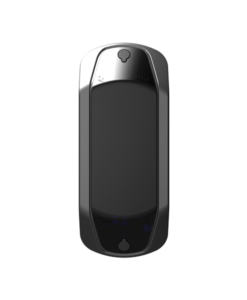

EMFD - Dual Safety Beam Sensor

Photocell

EMFD - Dual Safety Beam Sensor


TECHNICAL FEATURES

TECHNICAL FEATURES TECHNICAL FEATURES
Model EMFD
Product Code K114-01 / K-115-01
Working Volatage 12 - 24V DC
Working Current 22mA @12V DC
Zone Number 1 Transmitter and 1 Receiver Zone
Working Distance 15 metre
Working Temperature -20 oC  +70 oC
Contact Type Dry Contact  NO / NC
Min. Contact Reaction Time 1s
Max. Contact Power 60V DC 1A,  60V AC 1A
Weihgt 63gr
Dimensions (Width x Length x Depth) 10,4 x 4,4 x 3,4mm

Description


EMFD is a unit designed for safety and control purposes, operating with infrared signals as a receiver and a transmitter(transceiver structure). The products are designed to trigger the connected system and provide control if the signal path between the units is blocked by any obstacle.

The difference from standard beam sensors is that Dual Safety Beam Sensors have both a receiver and a transmitter on each card. The product provides higher safety than standard beam sensors, especially in places exposed to intense and vertical sunlight.
