TENPA shutter opener is a motor driver card that works with Rolan series remote controls. It is used to remotely control 2-way 3-terminal motors (Direction 1, Direction 2 and Common) used in shutter and blind systems.

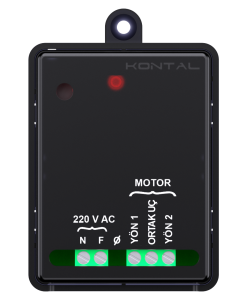

TENPA - 220 V Motor Control Board
Control Board
TENPA - 220 V Motor Control Board
TECHNICAL FEATURES
| Model | TENPA |
|---|---|
| Product Code | K002-01 |
| Working Volatage | 220V AC 50Hz |
| Working Current | 8,1mA @220V |
| Working Frequency | 433.92MHz |
| Contact Type | 220V AC |
| Max. Contact Power | 250V AC 10A |
| Max. Contacting Time | :120 sec |
| Auto-Learning | No |
| External Button Input | No |
| Remote Control Capacity | 40 |
| Weihgt | 105gr |
| Dimensions | 57 x 85 x 24mm |
