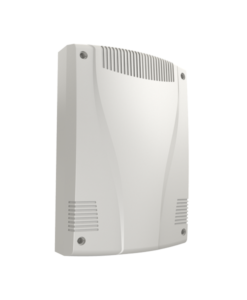

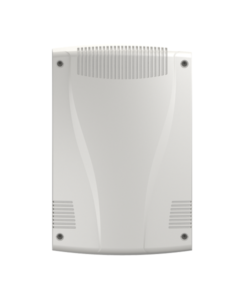

MFORCE2 1000W - Functional UPS
Control Board
MFORCE2 1000W - Functional UPS
TECHNICAL FEATURES
| TECHNICAL FEATURES | TECHNICAL FEATURES |
|---|---|
| Model | MFORCE2 |
| Product Code | K040-01 |
| Output Type | Double AC Motor Driver |
| Working Volatage | 220V AC 50Hz |
| Output Voltage | 220V (± %10) 50Hz |
| Output Wave Type | Modified Sinus Wave |
| Battery Model | Dry UPS Battery |
| Battery Number | 2 x 12V / 9Ah |
| Battery Charging Time | 24 hours |
| Working Temperature | 0 – 40 °C |
| Addition Protection | Overload ProtectionAuto shut down if voltage value is lower than normal |
| Control | Remote Controller |
| Max. Contact Time | 120sn via Mains Power/ 60sn via Battery Power |
| Weihgt | 7,2kg |
| Transmitter Count | 35 |
| Dimensions (Width x Length x Depth) | 227 x 345 x 93mm |
