YF, No Touch Hand Sensor is a product that gives a relay output when a hand or object approaches it. YF can be used in many scenarios but it is mainly used in places where hygiene is important like hospitals and toilets.

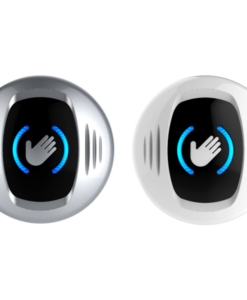

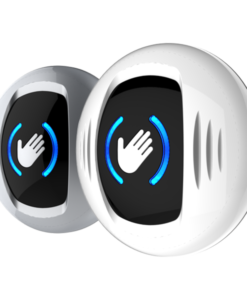

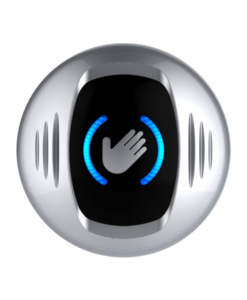

YF - No Touch Hand Sensor
Photocell
YF - No Touch Hand Sensor
TECHNICAL FEATURES
| TECHNICAL FEATURES | TECHNICAL FEATURES |
|---|---|
| Model | YF |
| Product Code | K006-01 |
| Operating Voltage | 12/24V DC |
| Operating Current | 50mA @24V DC |
| Maximum Power | 1,2W |
| Zone Number | 1 Transmitter / 1 Receiver Zone |
| Working Distance | 5 – 30cm |
| Relay Number | 1 |
| Contact Type | Dry Contact/NO/NC |
| Max. Contact Power | 60V DC 100mA / 42V AC 100mA |
| Contacting Time | 0,4 / 5 Seconds |
| Colour Options | White, Gray |
| Dimensions (Depth x Diameter) | 23 x 80mm |
| Weight(gr) | 47 |
