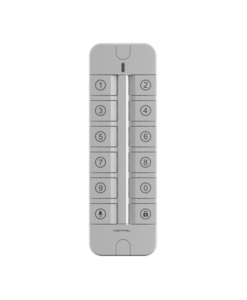

TGS - Password Panel
TGS - Password Panel
TECHNICAL FEATURES
| Model | TGS |
|---|---|
| Product Code | K024-01 |
| Working Volatage | 12 -24V DC |
| Working Current | 90mA @24V DC |
| Contact Type | Dry Contact / NO |
| Max. Contact Power | 48V 1A |
| Contacting Time | Ringing: While bell button is being pushedOutput: For 0,5 – 99 seconds |
| Dimensions (Width x Length x Depth) | 43 x 135 x 17,5mm |
| Weight(gr) | 66 |
