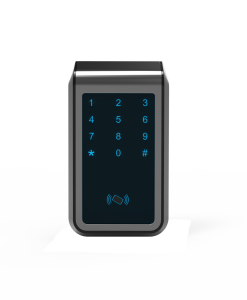

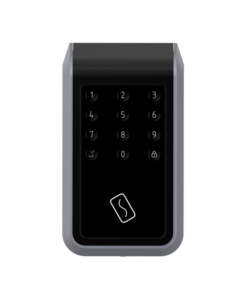

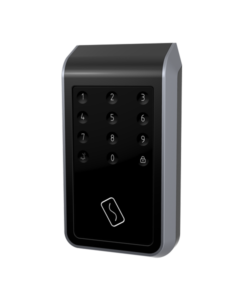

DGS - Mifare Reader and Touch Password Panel

DGS - Mifare Reader and Touch Password Panel


TECHNICAL FEATURES

Model DGS
Product Code K014-01
Operating Voltage 12 – 24V DC/AC
Operating Current 45mA @24V DC
Mifare Operating Frequency 13,56MHz
Mifare Card Capacity 2000pcs
Password Number 1000pcs
Contact Type Dry Contact / NO
Maximum Contact Power 48V 1A
Contacting Time 0,5 – 99sn
Weihgt 131 Gr.
Dimensions 78 x 137 x 26mm

Description


The Touch Password Panel System is a touch-based access control device equipped with capacitive touch buttons for PIN entry or RFID card authentication. This system allows you to activate access points such as doors or turnstiles, or it can be used for triggering compatible another systems which work with dry contact. It has 5 different working modes.
  • Automatic glass door systems
  • Shutter systems
  • Industrial doors and high speed PVC door systems
  • Safety barriers
  • Turnstile systems
