ZMK is a motor control card used in garage door systems and sliding garden doors. The Roland series remote controls and external button inputs on the card can be operated. There is also a beam sensor input for safety control.

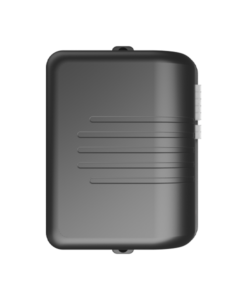

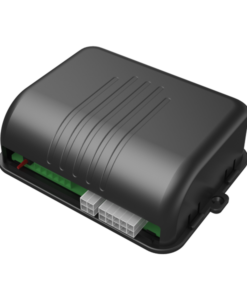

ZMK - Chain Motor Control Board
Control Board
ZMK - Chain Motor Control Board
TECHNICAL FEATURES
| TECHNICAL FEATURES | TECHNICAL FEATURES |
|---|---|
| Model | GAF |
| Product Code | K008-01 |
| Working Volatage | 220V 50Hz AC |
| Working Current | 12mA @220V |
| Working Frequency | 433,92MHz |
| Contact Type | 220V AC |
| Max. Contact Power | 250V 10A AC |
| Max. Contacting Time | 0,3 – 180sn |
| Auto-Learning | + |
| Remote Control Capacity | 500 |
| Weihgt | 430gr |
| Dimensions (Width x Length x Depth) | 158,2 x 98,3 x 50mm |
