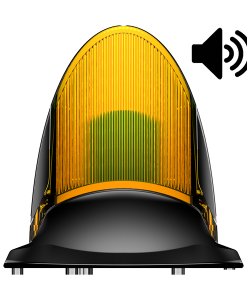

SFL - Audible Flashing Light


TECHNICAL FEATURES

Model SFL
Product Code K029-01
Operating Voltage 220V AC  -  24V DC
Operating Current 12mA @220V AC  /  40mA @24V DC
Operation Types 2 Sound&Light Combinations / Sound Active / Sound Passive
Montage Surface Flat Floor  /  Pipe with 25mm Diameter
Light Surface UV Acrylic
Sound Intensity <1m ~ 110 dB
Weihgt 226gr
Dimensions (mm) 145 x 150 x 70

Description


The SFL is a signaling device designed to support safe passage in automatic doors, barrier systems, and industrial access control points. It features a high-visibility LED flasher combined with an integrated buzzer to provide both visual and audible alerts. Thanks to its dual voltage support—operating on both 220V AC and 24V DC—it can be easily integrated into a wide range of systems.

With an IP42 protection rating, the SFL is suitable for indoor use and outdoor environments not directly exposed to water. Its UV-resistant acrylic light surface and impact-resistant compact housing ensure long-lasting durability and reliable performance. The LED-based design delivers maximum luminous intensity with minimal energy consumption, while the built-in buzzer module provides effective auditory warnings.

Its aesthetically refined design makes it a versatile and effective alerting solution for applications ranging from turnstile access points to in-factory guidance systems.

*Pipe mounting brackets for the SFL are available upon request. Therefore, they must be specifically indicated at the time of order; otherwise, a separate order will be required for the mounting brackets.
