Automatic Glass Door Beam Sensor is a control and safety unit that works on infrared signals. The system is established by mounting the receiver and transmitter sensors in the same direction. When an object enters between the sensors, relay output is given via the card. There are two models of CAF, one channel (CAF1S) and two channels (CAF2S).

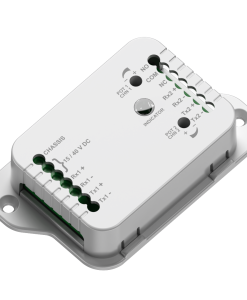

CAF1S - One Channel Automatic Door Beam Sensor
Photocell
CAF1S - One Channel Automatic Door Beam Sensor
TECHNICAL FEATURES
| Model | CAF1S |
|---|---|
| Product Code | K051-01 |
| Working Volatage | 15 - 40V DC |
| Working Current | 15mA @24V DC |
| Zone Number | 1 |
| Zone Cable Length | 6m |
| Zone Working Frequency | 38KHz |
| Min. Contacting Time | 350ms |
| Max. Working Distance | 10m |
| Working Temperature | -20°C +55°C |
| Contact Type | Dry Contact/NO/NC |
| Max. Contact Power | 60V DC 1A, 60V AC 1A |
| Weihgt | 296gr |
| Dimensions (Width x Length x Depth) | 63 x 104 x 26,5mm |
