Wireless Hand Sensor is a control device that detects when an object approaches, without the need for touch, and sends a signal to its receiver during the detection. The receiver card will give relay output as long as the signal comes from the hand sensor. Since it can be used without the need for contact and is battery-operated, it is easy to assemble, practical and also hygienic. With these features, it is a product that can be easily used in places where hygiene is at the forefront, such as hospitals, in automatic glass door systems where cable installation is difficult, and in many similar areas.

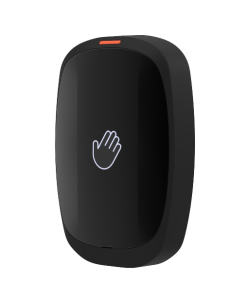

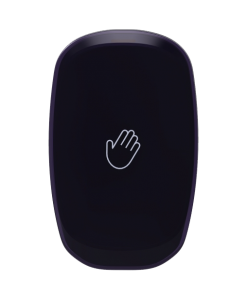

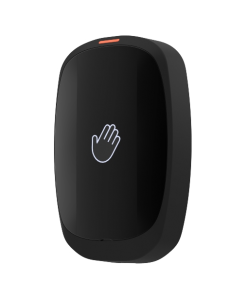

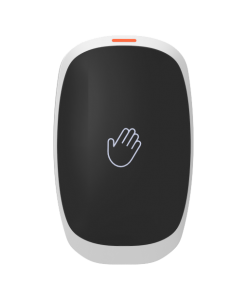

PES - Wireless Hand Sensor
Detector · Photocell
PES - Wireless Hand Sensor
TECHNICAL FEATURES
| TECHNICAL FEATURES | TECHNICAL FEATURES |
|---|---|
| Model | PES White / PES Black |
| Product Code | K155-01 |
| Number of Channel | 1 |
| Code Type | Constant |
| Programming | Unique ID for each product |
| Working Volatage | Battery (2 x 1.5V AAA) |
| Working Current | ~30mA |
| Sleep Current | ~25uA |
| Working Frequency | 433,92 MHz |
| Output Power | ~10dBm |
| Zone Number | 1 Transmitter / 1 Receiver Zone |
| Hand Sensing Distance | 5 - 25 cm |
| Receiver Working Distance | <30m* |
| Working Mode | as much as you pressed ** |
| Battery Life | 2 years*** |
| Receivers Working Synchronously | PESA(Product Code: K172-01) |
| Colour Options | Black, White |
| Weihgt | 90gr |
| Dimensions (Width x Length x Depth) | 60,35 x 97,68 x 19,90mm |
