The safety edge system works in transceiver structure and is used in shutters, barriers, sliding doors and industrial doors. The purpose of use is to prevent the moving door/shutter from hitting and harming people or other things. The GKV model works on the contact principle and the system is controlled when the cables passing through the safety rubber encounter an object and come into contact with each other.

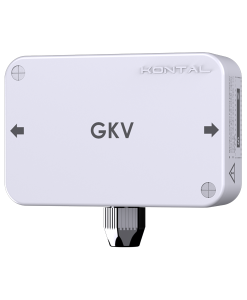

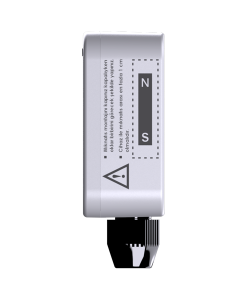

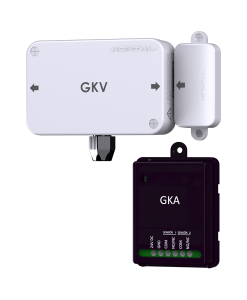

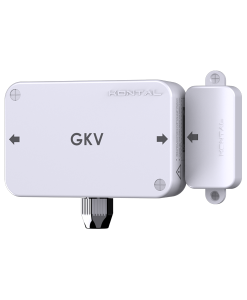

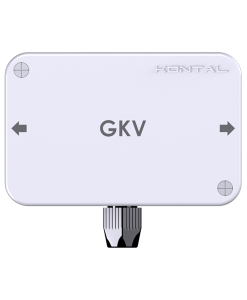

GKV - Wireless Safety Edge Transmitter
Accessories · Detector · Fixed Code
GKV - Wireless Safety Edge Transmitter
TECHNICAL FEATURES
| Model | GKV |
|---|---|
| Product Code | 166-01 |
| Show All | Contact |
| TCM - TOSBA CONTROLLER (MINI) | 3V DC |
| Code Type | Fixed |
| Frequency | 433,92MHz |
| Output Power | ̴ 0,05W |
| Maximum Current | 17mA |
| ESA - Hand Sensor Builtin | 2cm |
| Weihgt | 125,4 gr |
| Dimensions | 100 x 65 x 28,5 mm |
