Radar system will active when perceive a object. In general, it uses for sliding door applications.

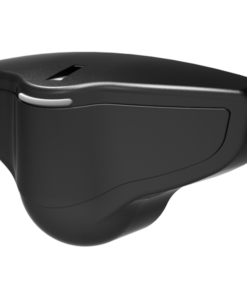

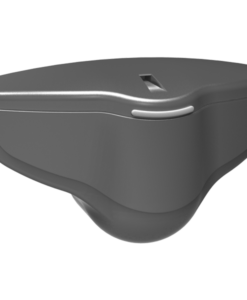

RDR2 - Automatic Door Radar
Detector
RDR2 - Automatic Door Radar
TECHNICAL FEATURES
| Model | RDR2 |
|---|---|
| Product Code | K162-01 |
| Working Volatage | 24V DC |
| Idle Current | 50mA @24V DC |
| Contact Type | Dry Contact/NO/NC |
| Max. Contact Power | 60V DC 100mA 42V AC 100mA |
| Max. Contacting Time | 1sn |
| Max. Working Distance | 4m |
| Additional Features | Detection Distance |
| Weihgt | 180gr |
| Dimensions (Width x Length x Depth) | 140 x 78 x 49mm |
